• Power supply: 220V AC 50Hz / 110V AC 60Hz
• Motor power: 24V DC /60W
• Motor rotational speed: 2200r / min
• Reduce ratio: 42:1
• Max. door weight 400kg

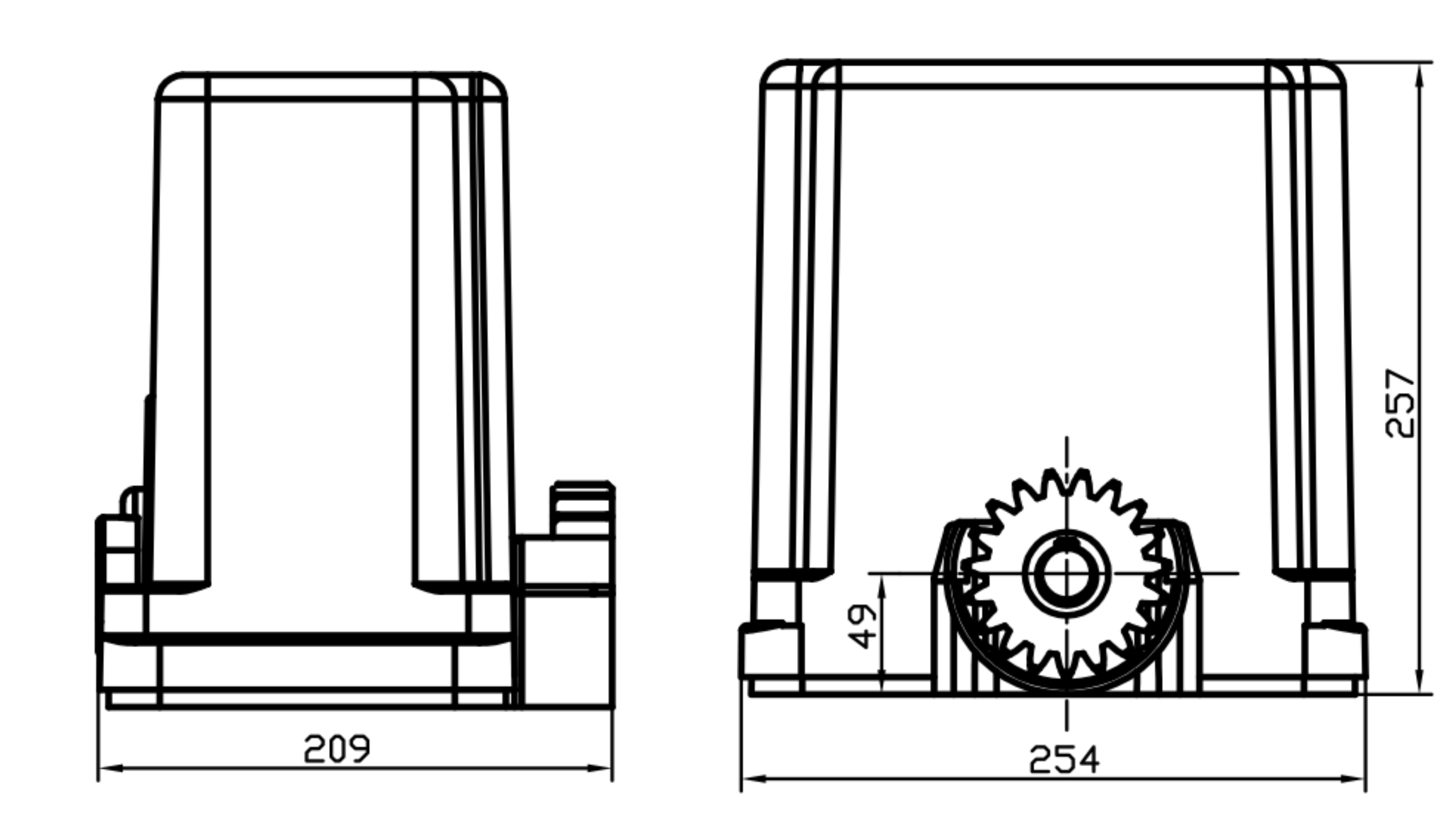

• dimensions for unit: 254*209*257mm

Product Features

• 24V DC MOTOR, SAFE AND SAVE
• Build in Control Board
• This is an innovative sliding gate operator, which low stand-by consumption is the best design for solar charging
• Electronic soft-start, ensures the motor starts steadily and smoothly
• Release key for power failure and locking the operator's cover
• Intelligent terminals for photocell, alarm lamp, external receiver etc.
• Easy to install and maintain
• Working environment temperature: -10℃ ~ +50℃
